Product model: LA-Xlong-8000

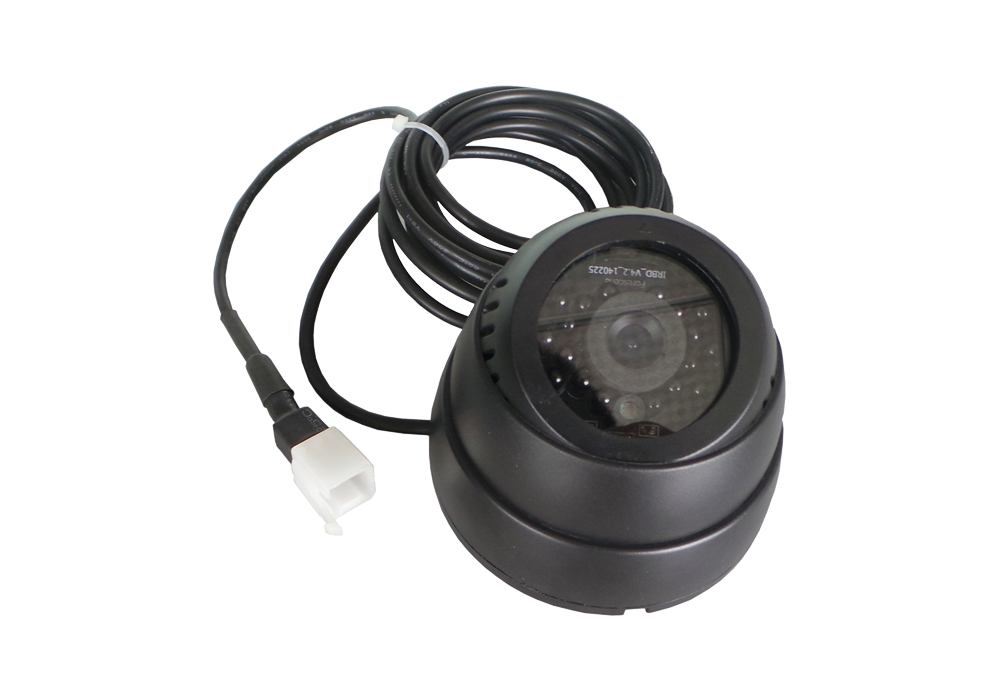

Product Description: ABS plastic standard conch serial port camera
Product specifications Resolution VGA QVGA qqvga Baud rate 115200 Output mode RS485 Compression mode JPEG Working Voltage 5V Working current < 80mA (without infrared) / < 280mA (infrared on) Working temperature - 20 ℃～ 85 ℃ Storage temperature - 30 ℃ - 85 ℃ Night vision distance: 5m-10m Lens: 2.8mm The photosensitive area is 3.5964mm x 2.7084mm Synchronization within a synchronization system The gray level is ten Frame rate 30fps Horizontal synchronous frequency 15.625khz/15.734khz Vertical synchronous frequency 50 Hz / 60 Hz Minimum illumination 0 lux / f1.2 (IR on) Gamma 0.45 White Balance Auto Auto gain The SNR is greater than 48dB Backlight compensation Auto |
| Project | Specification parameters |
| resolving power | VGA QVGA QQVGA |
| Working current | < 80mA (without infrared) / < 280mA (with infrared on) |
| Photosensitive area | 3.5964mm x 2.7084mm |
| Horizontal synchronization | Frequency 15.625khz/15.734khz |
| Minimum illumination | 0 lux / f1.2 (IR on) |
| working temperature | -20℃～85℃ |
| Baud rate | 115200 |
| Night vision distance | 5米-10米 |
| synchronous system | Internal synchronization |
| Vertical synchronization | Frequency: 50 Hz / 60 Hz |
| Sound to noise ratio | >48dB |
| Storage temperature | -30℃～85℃ |
