Color 1 / 2.7 ahd IR-cut 1080p f = 2.8mm, (wide angle 120 degrees)

With built-in audio (optional) infrared distance 5-10m; 12 LEDs @ 5 * 12pcs led voltage 12V

Product parameters:

The overall performance is excellent, the picture quality is clear and bright

Signal to noise ratio S / N: ≥ 48dB

Bai Ping WB: Auto

Backlight compensation BLC:Auto

Day night: color to black day night

Wick manufacturer: imported

Amount: 12 LEDs

Infrared range: 5-10m

Lens specification lens: million metal lens metal lens2.8mm

Power supply: DC 12V 1a-2a

Waterproof grade: Waterproof:

Shell: Mini Metal conch

Environmental conditions: - 20 ～ + 60 ° C ＆ ≤ 95% RH

Definition of camera aviation head female head: 1. - - + 12V (red line) 2. ---- GND ground (black line)

3. Audio (white line) 4. Video (yellow line)

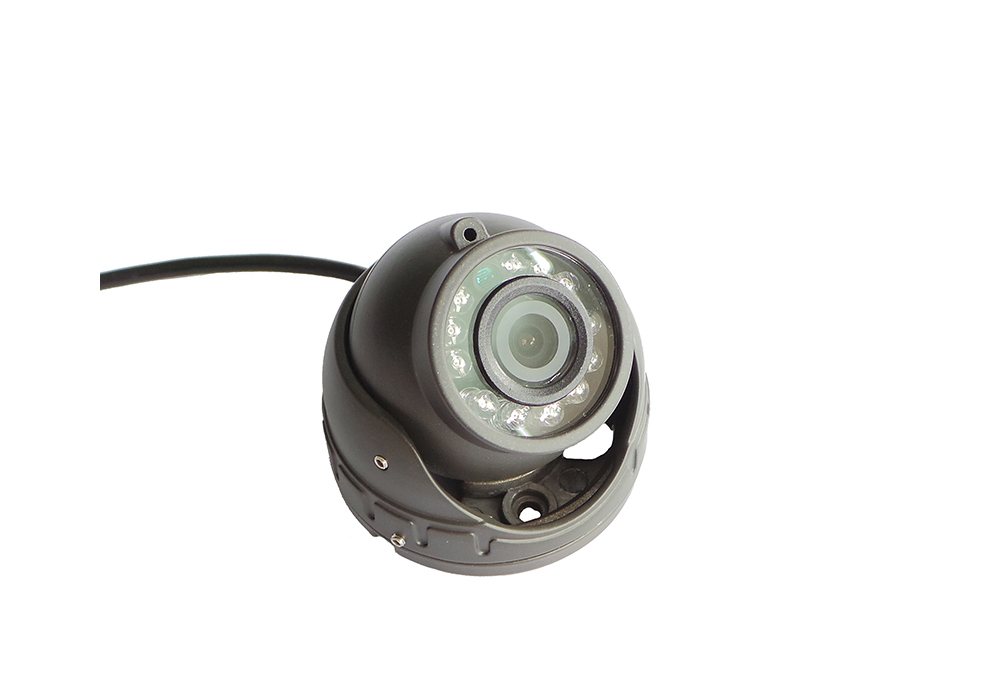

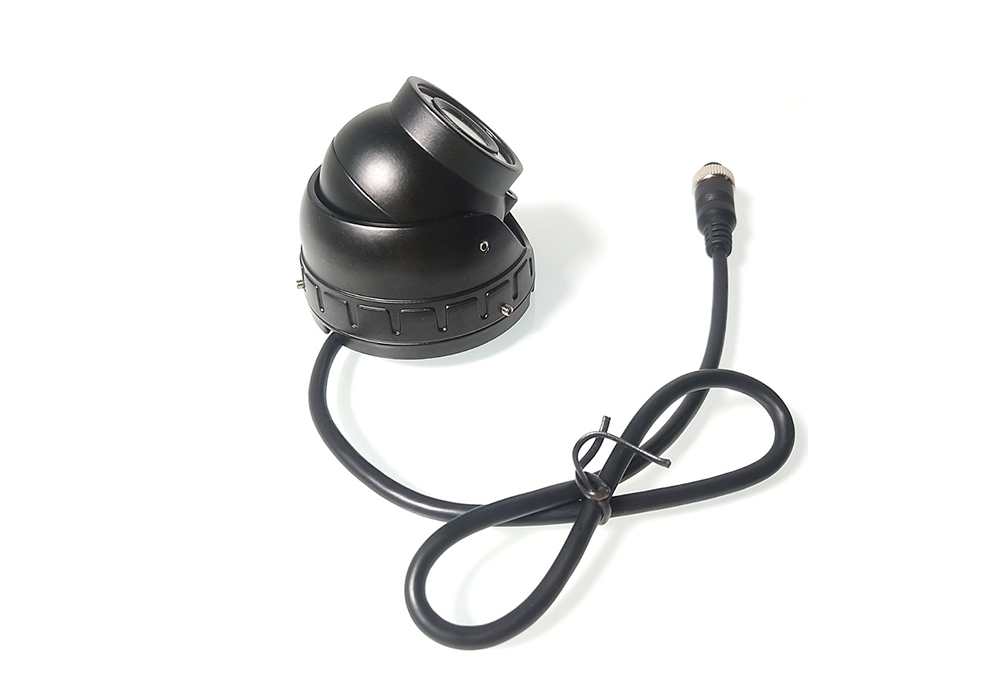

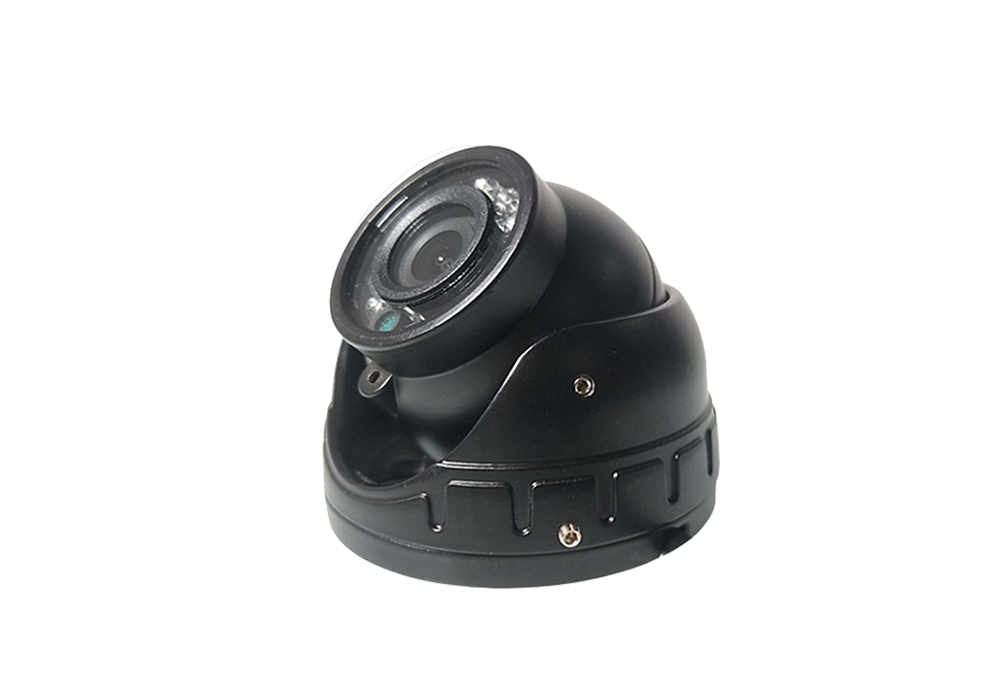

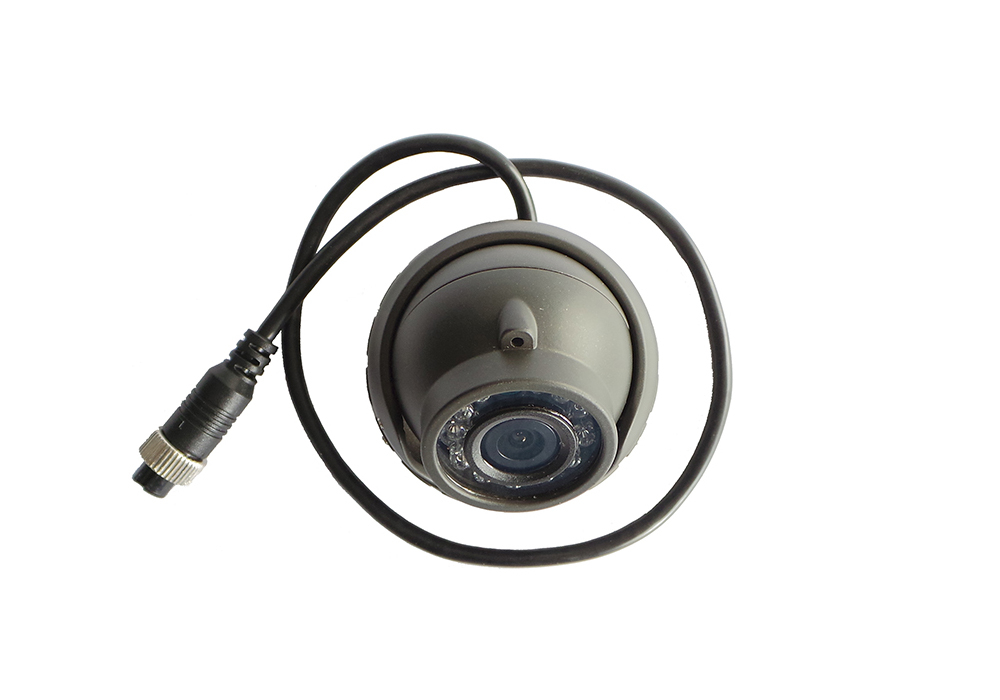

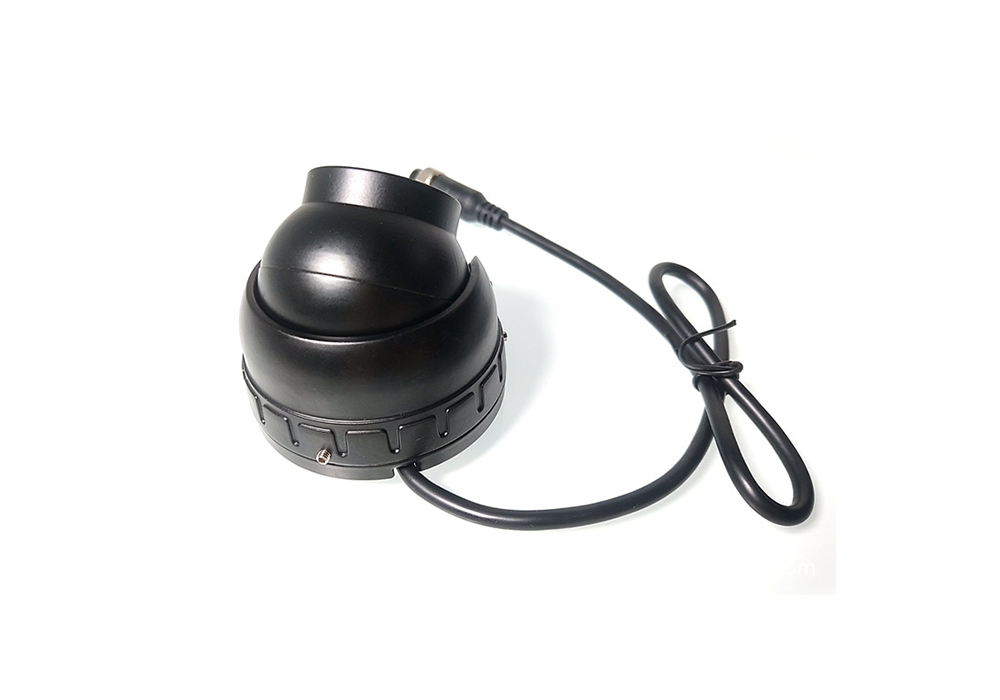

Vehicle Mini conch type metal hemispherical infrared camera size: diameter 59mm * height 56mm
