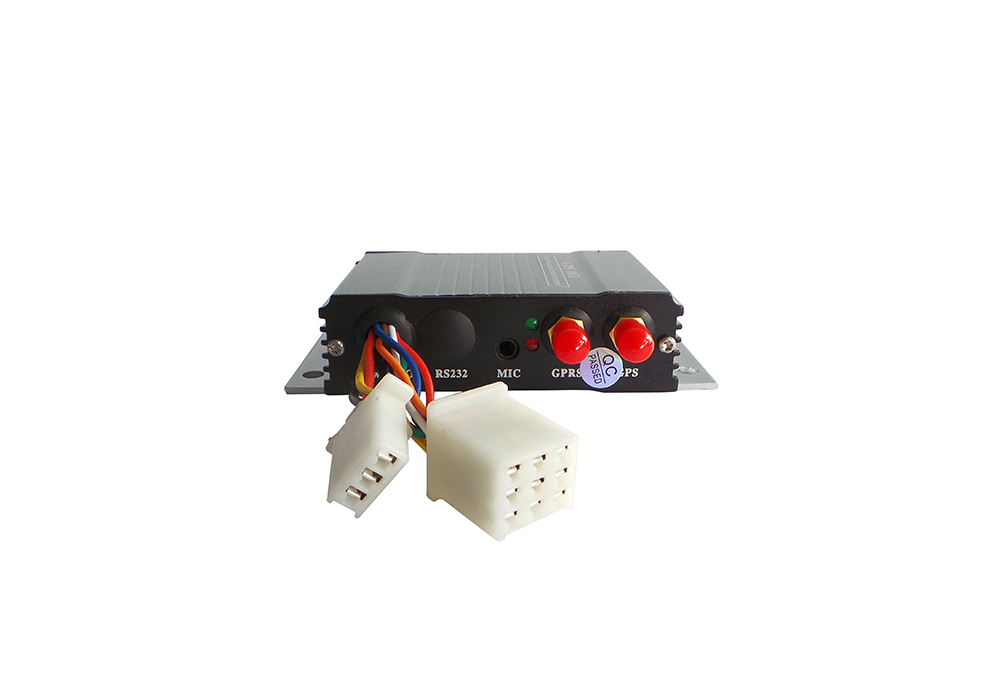

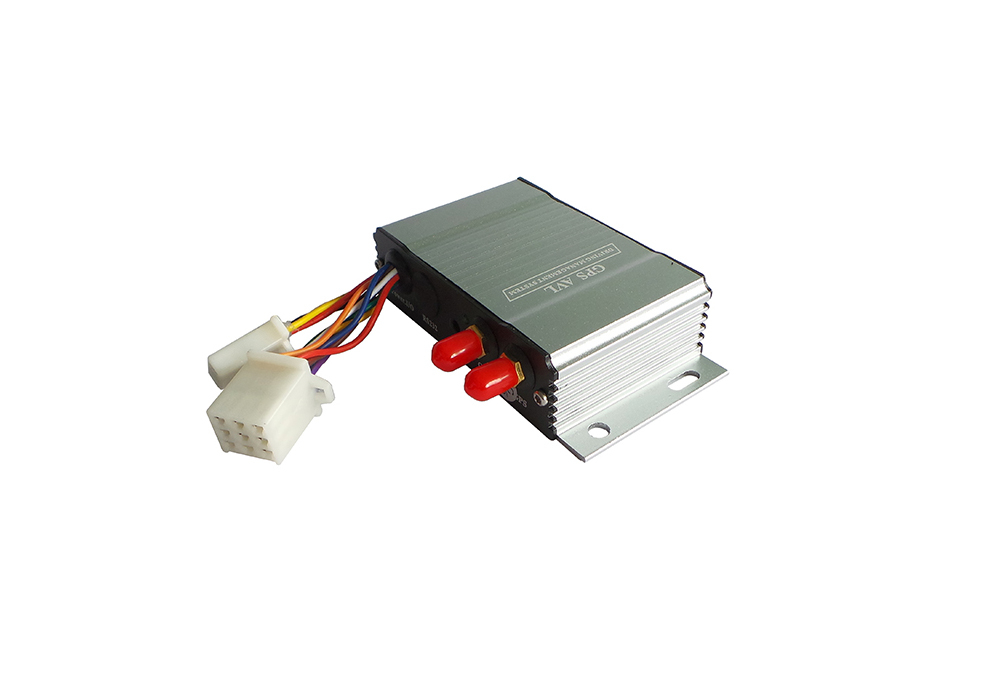

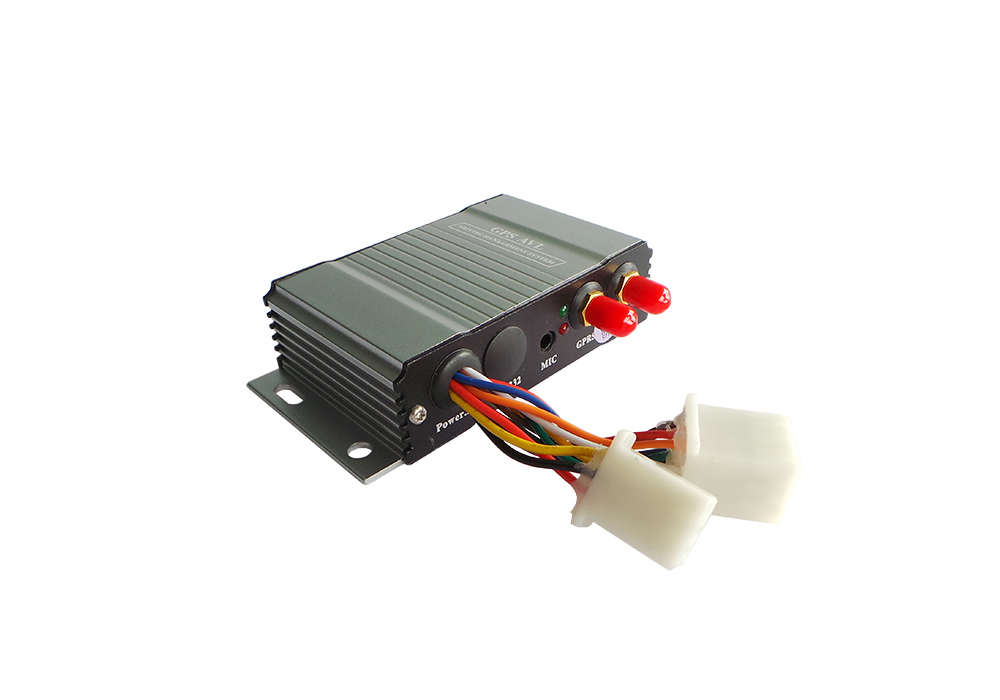

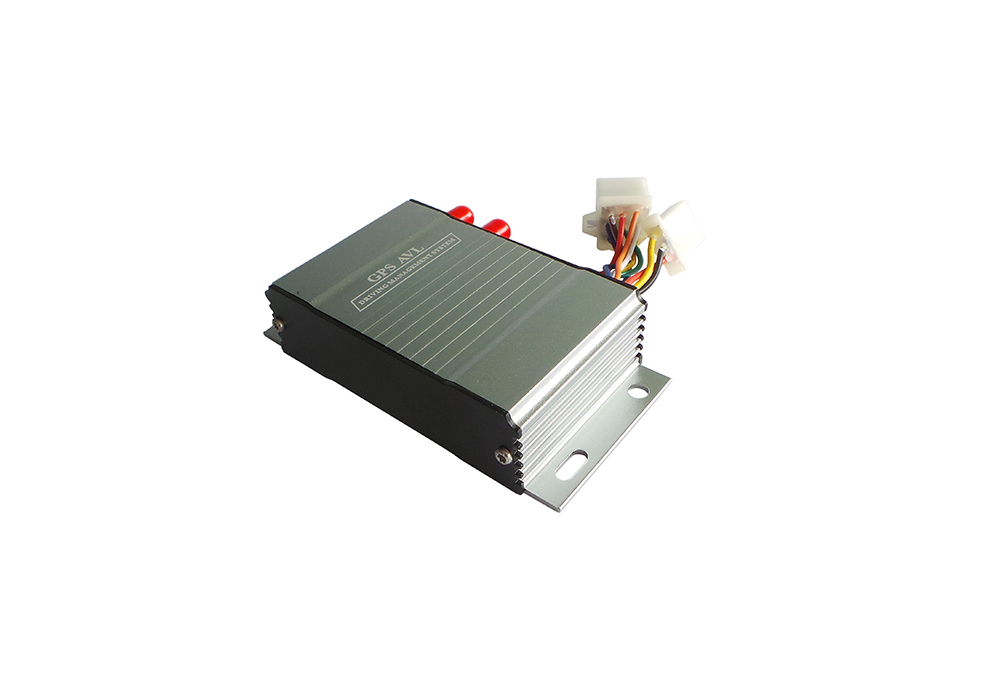

La008g GPS intelligent terminal has built-in industrial grade high-performance 2G communication module, adopts GPRS and SMS dual-mode communication side, and supports GPS + BD + lbs triple positioning. The terminal is stable and reliable, with full functions and rich interfaces. It can be applied in different fields such as logistics, freight transportation, public transport, group vehicles, and can also be customized according to different industries and user needs.

Specification parameters:

Hardware parameters

Working voltage: DC 9-55v

Working current 50 -100mA@12V

GSM module GSM 850 / 900 / 1800 / 1900

Communication mode TCP

Communication network GPRS

Positioning mode GPS + Beitou

Positioning error < 10m

Acceleration limit less than 4G

AGPs supports EPO aided positioning and second setting

Sensor 3D acceleration sensor

Working temperature - 25 ° to 70 ° C

Storage temperature - 40 ° ~ 85 ° C

Terminal size 101mm × 50mm × 24mm

Serial number function item function description remarks

1. Basic function: regular return of Beidou GPS dual-mode positioning data. Interval unit: s; default timing interval: 30s; maximum interval: 300s.

2. Acc status terminal detects acc status in real time and reports it in location data.

3 remote upgrade can trigger the device for remote upgrade through SMS / transparent transmission instruction

4 blind area supplementary transmission terminal is in the network signal blind area but can be located, the positioning data is stored and uploaded to the platform when the signal is normal.

When the turning point is larger than a certain angle, the terminal will immediately upload a location data to optimize the trajectory.

Electronic fence can draw circle, rectangle and polygon area

7 mileage statistics terminal supports mileage statistics based on Beidou GPS.

8. Expand the function of fuel consumption data acquisition and install oil quantity acquisition equipment

9 temperature data acquisition with temperature acquisition equipment

10 external camera for image acquisition can realize the function of timing and snapshot

11 information dispatching function is connected with TTS function and external loudspeaker can realize voice broadcast

12 SOS one button alarm

The terminal sends alarm data to the platform in case of overspeed

14 low voltage alarm of main power supply. When the external voltage (vehicle power supply voltage) is lower than 10V, the terminal will report low-voltage alarm.

15 power down (machine removal) alarm when the terminal is manually removed, the terminal immediately reports the power failure (dismantling) alarm.

16 fatigue driving alarm default driving 4 hours, need to rest 20 minutes

The alarm in and out of the area needs to be set on the platform and supports the alarm in rectangular, circular and polygonal areas

18 parking time-out alarm when parking exceeds the set time, it will alarm the platform

19 temperature alarm if the temperature exceeds the set range, it will alarm the platform

20 oil volume change alarm if the oil quantity changes beyond the set range, it will alarm the platform
