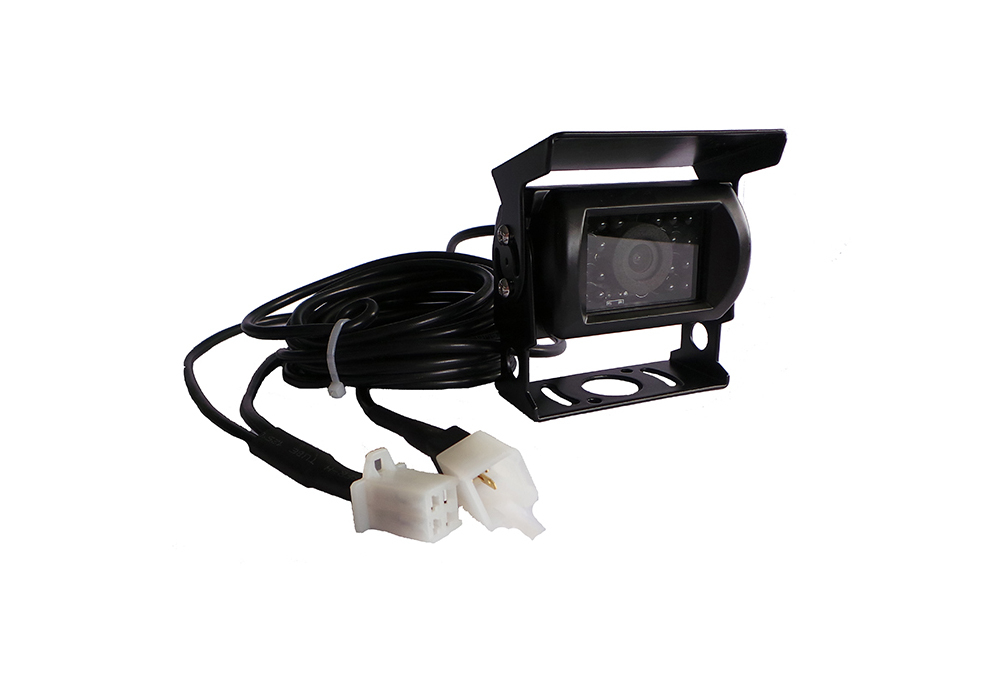

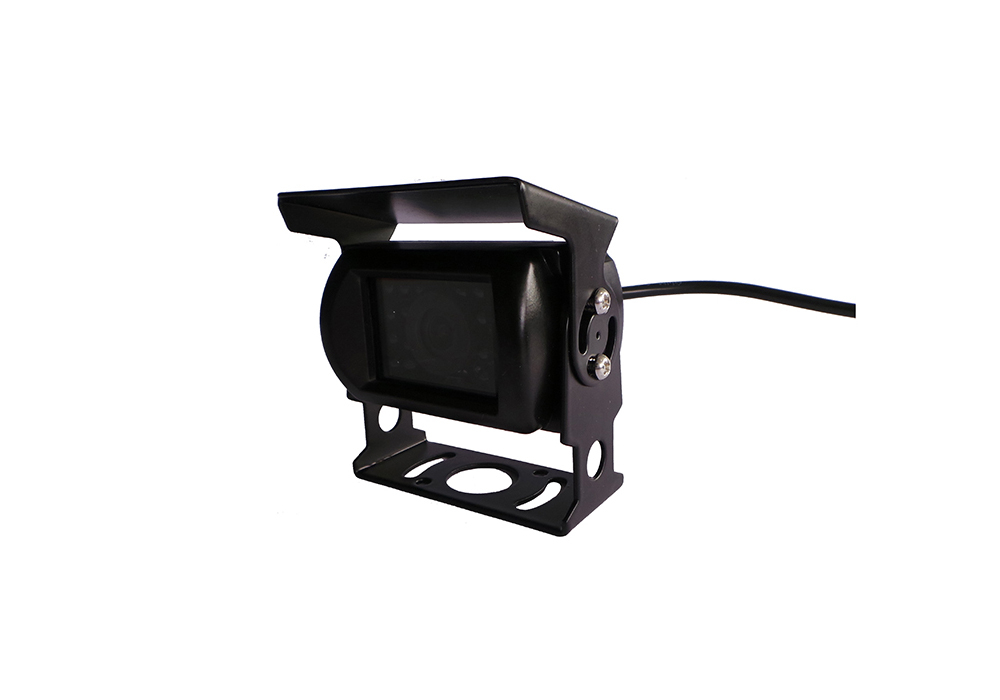

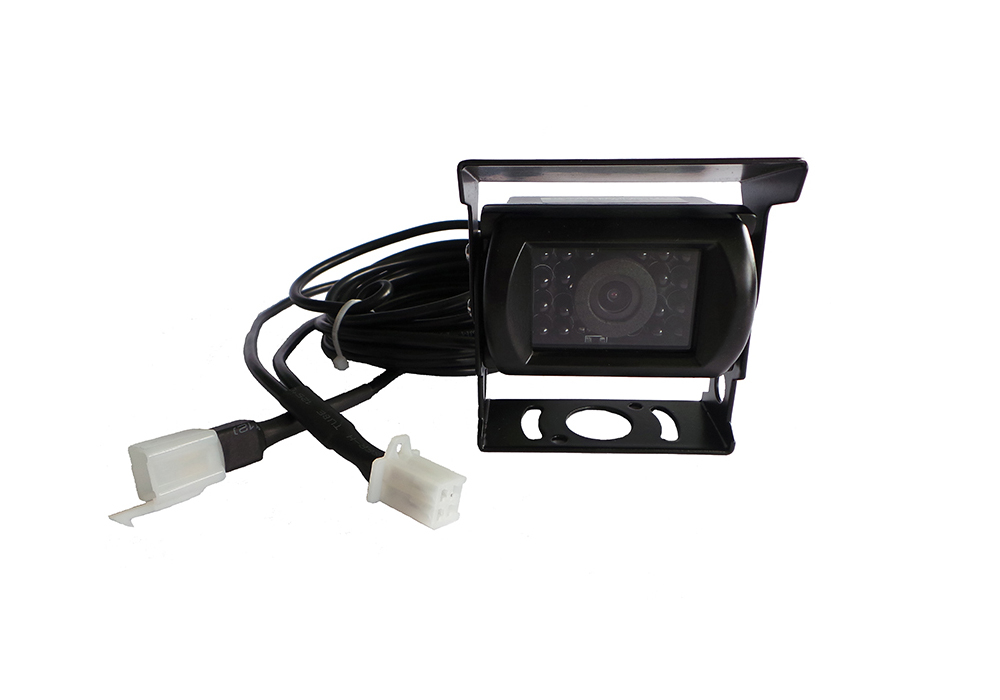

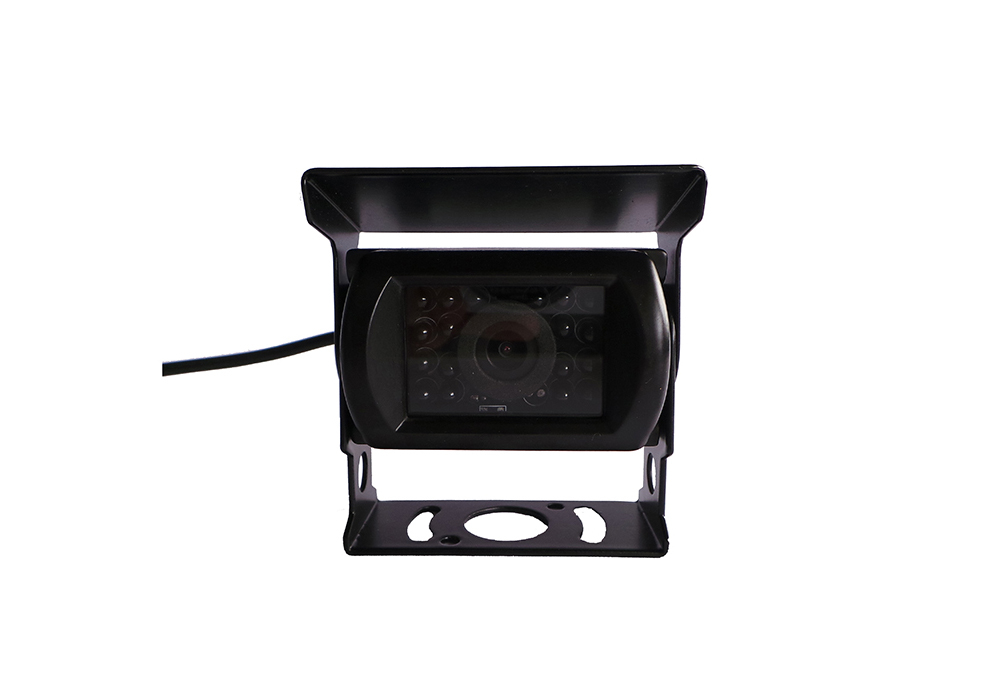

GPS serial port metal car mounted square digital waterproof camera LA-Xlong-8002

Product model: LA-Xlong-8002

Product Description: metal car mounted square digital serial port waterproof camera


  • GPS serial port metal car mounted square digital waterproof camera  LA-Xlong-8002
  • GPS serial port metal car mounted square digital waterproof camera  LA-Xlong-8002
  • GPS serial port metal car mounted square digital waterproof camera  LA-Xlong-8002
  • GPS serial port metal car mounted square digital waterproof camera  LA-Xlong-8002
  • GPS serial port metal car mounted square digital waterproof camera  LA-Xlong-8002



Click to download product information

Features

Product specifications

Resolution VGA QVGA qqvga

Baud rate 115200

Output mode RS485

Compression mode JPEG

Working Voltage 5V

Working current < 80mA (without infrared) / < 280mA (infrared on)

Working temperature - 20 ℃~ 85 ℃

Storage temperature - 30 ℃ - 85 ℃


Night vision distance 8m lens: 2.8mm

The photosensitive area is 3.5964mm x 2.7084mm

Synchronization within a synchronization system

The gray level is ten

Frame rate 30fps

Horizontal synchronous frequency 15.625khz/15.734khz

Vertical synchronous frequency 50 Hz / 60 Hz

Minimum illumination 0 lux / f1.2 (IR on)

Gamma 0.45

White Balance Auto

Auto gain

The SNR is greater than 48dB

Backlight compensation Auto

Waterproof / dustproof IP67



The main parameters

Project
Specification parameters
resolving power

VGA QVGA QQVGA

Working current< 80mA (without infrared) / < 280mA (with infrared on)
Photosensitive area3.5964mm x 2.7084mm
Horizontal synchronizationFrequency 15.625khz/15.734khz
Minimum illumination0 lux / f1.2 (IR on)
working temperature

-20℃~85℃

Baud rate115200
Night vision distance8米
synchronous systemInternal synchronization
Vertical synchronizationFrequency: 50 Hz / 60 Hz
Sound to noise ratio>48dB
Storage temperature-30℃~85℃
